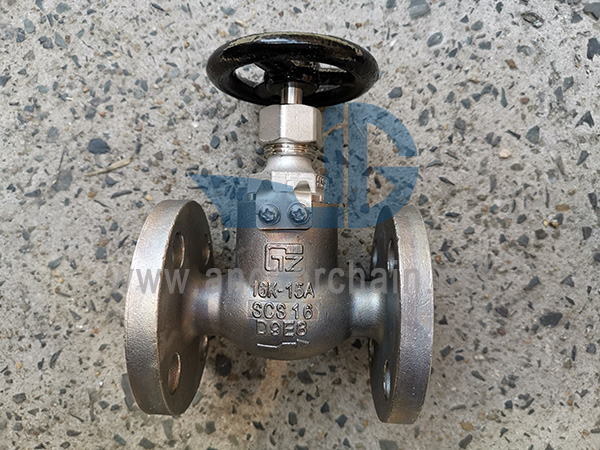

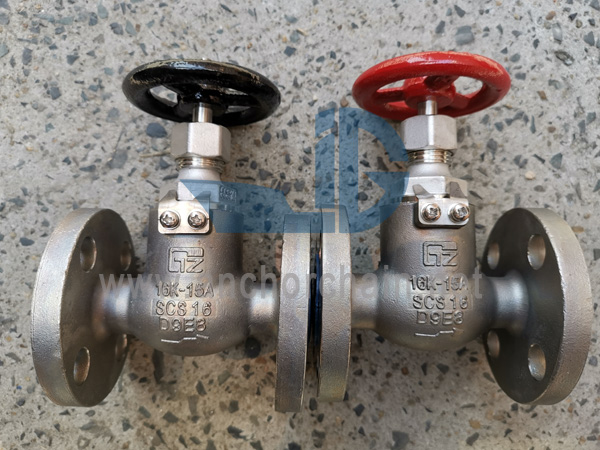

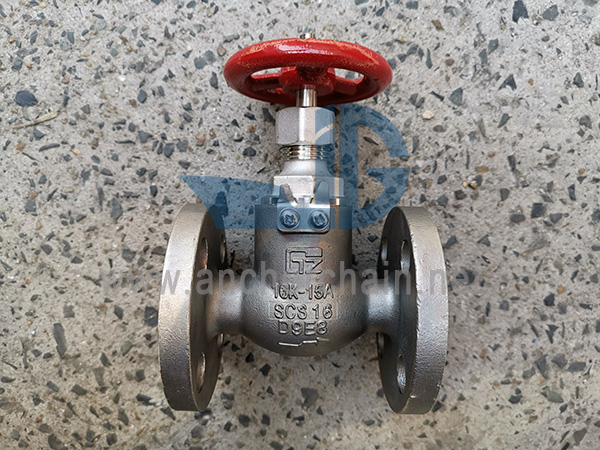

Supape cu glob din oțel inoxidabil JIS F 7303 16K SCS16 Standard de proiectare: JIS F7303-1996Standard de testare: JIS F7400-1996Presiune de testare: corp-3,3Mpa, scaun-2,42Mpa Dimensiunea flanșei conform JIS B2220-16K
Dimensiunea flanșei conform JIS B2220-16K
Material de bază:
1-corp: oțel inoxidabil - SCS16/SUS316L
2-Disc: oțel inoxidabil - SCS16/SUS316L
3-tije: oțel inoxidabil - SCS16/SUS316L
4-Capotă: oțel inoxidabil - SCS16/SUS316L
5-Roată de mână: fontă (FC200)
Cod IMPA | mărimea | L | D | C | Nr. gaura pentru bolt | h | t | H | D2 |
750141 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 130 | 80 |
750142 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 140 | 100 |
750143 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 160 | 125 |
750144 | 32 | 160 | 135 | 100 | 4 | 19 | 16 | 170 | 125 |
750145 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 190 | 140 |
